ADHESIVE SOLUTIONS
ITI Industrial Supplies – News
111-> Secure labelling in icy temperatures
Work processes do not take a winter break. This also applies to identification of incoming goods. In Steel Service Centers this means that labels must stick to cold, wet and frosted products. Even if temperatures are extremely low, the process must be continued. Standard labels do not adhere at temperatures below 5 °C/40 F and the goods have to be “acclimatized” before the label can be applied. This is not required with the newly developed PA-50-701 adhesive. GRAPHIPLAST® labels can now be used at temperatures to -20 °C.
Application: Secure labelling, even in winter.
Benefit: Quick and secure labelling at temperatures below!
Sample Requests: info@highheatlabels.com or call 305-393-8669
110-> Adhesion to sensitive stainless steel surfaces
The manufacturing of specialty stainless steel surfaces is time-consuming and expensive. To ensure a smooth material flow, self-adhesive labels are used for this process. They control the packaging process as well as warehouse and shipping logistics. Mirror surfaces are a particular challenge for labeling. Labels must provide a secure bond and at the same time be removable. But it doesn’t end here – the area where the adhesive was applied to the surface must not be visible – not even as a label “shadow”. Labels made from GRAPHIPLAST® 7177 with a adhesive leave no
trace – guaranteed – for a mirror finish on fridges and sinks.
Application: 100% removable adhesion to stainless steel
Benefit: An all-round talent for material flow control
Sample Requests: info@highheatlabels.com or call 305-393-8669
109-> Tire logistics in rely on GRAPHIPLAST
Branded tires from different manufacturers are distributed by a leading logistics company. Warehouse organisation and picking items for deliveries require a barcode label with a good adhesion to rubber. GRAPHIPLAST® 7177, in combination with a special adhesive, provides optimum adhesion to tires. The data is printed on the label by thermal transfer printers. As the labels are only used for a short period of time, the excellent price/performance ratio of the solution made the difference.
Application: Perfect adhesion to rubber
Benefit: An all-round talent for material flow control
Sample Requests: info@highheatlabels.com or call 305-393-8669
108-> Adhesive labels for frozen surfaces and extreme humidity
We have always made efforts to widen the bandwidth of product properties. For the identification with self-adhesive labels this means to be able to ensure a good bond in different climatic conditions and to achieve good adhesion to a wide range of surfaces. Moisture, dust and oil represent barriers for adhesives – they prevent the adhesive from developing a permanent bond with the actual medium. The new PK-80-651 and PK-50-701 GRAPHIPLAST® adhesives combine many of these properties in one product and help to create adhesive labels for a wide range of applications. They can be used, e.g. for sticking to surfaces affected by moisture and hoar frost.
Application: Adhesion in freezing and high moisture conditions
Benefit: Secure identification with universal adhesives
Sample Requests: info@highheatlabels.com or call 305-393-8669
107-> User-friendly container identification
We have always made efforts to widen the bandwidth of product properties. For the identification with self-adhesive labels this means to be able to ensure a good bond in different climatic conditions and to achieve good adhesion to a wide range of surfaces. Moisture, dust and oil represent barriers for adhesives – they prevent the adhesive from developing a permanent bond with the actual medium. The new PK-80-651 and PK-50-701 GRAPHIPLAST® adhesives combine many of these properties in one product and help to create adhesive labels for a wide range of applications. They can be used, e.g. for sticking to surfaces affected by moisture and hoar frost.
Application: functional solution for container identification
Benefit: An all-round talent for material flow control
Sample Requests: info@highheatlabels.com or call 305-393-8669

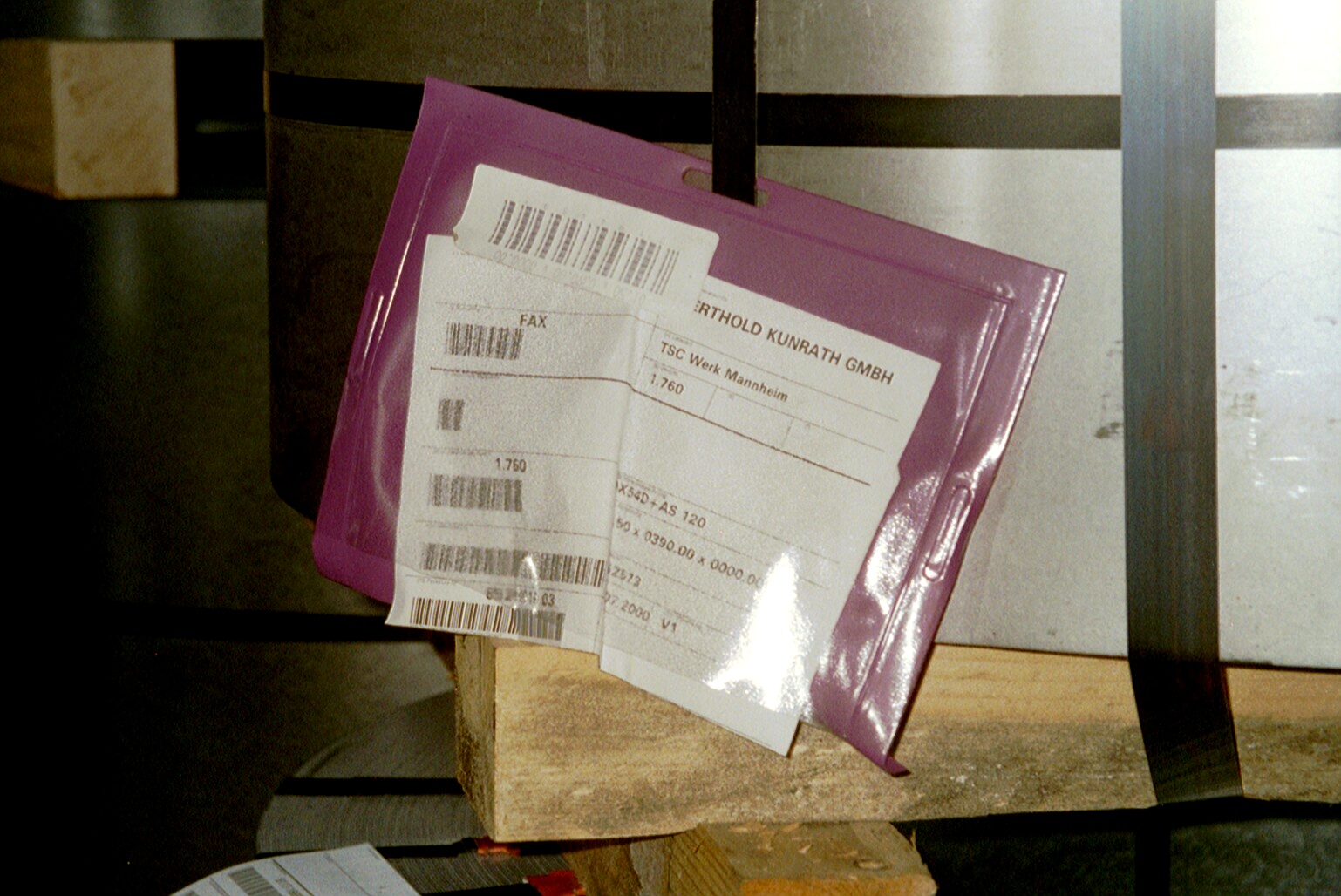

106-> Partial application of adhesive offers more options
The identification of stacked sheet metal or sheet metal coils with sensitive surfaces requires labels with a firm bond. These labels enable good fixing to the strap. It is important that the part of the label that sticks over the edge of the strap is free from glue, to avoid any transfer of adhesive onto the surface. Partial application of adhesive is an established technology, which, until now, could only be used in a limited way for high-strength, permanent adhesives. Our PK-80-601 adhesive has both extremely high bond strength and it can be applied partially. An ideal solution for applications where the glue has to be applied precisely to a specific, small area and where high adhesive strength has to be combined with adhesive application in selected areas.
Application: Strap identification without wallet, adh. AIAG tags
Benefit: An all-round talent for material flow control
Sample Requests: info@highheatlabels.com or call 305-393-8669
105-> Better bond for self-adhesive labels with roller
Attaching an adhesive label is an important process, the main factor for bonding strength. Even application and contact pressure determine the adhesive strength that is actually achieved. To achieve a permanent bond, the use of a simple roller, similar to the ones used for wallpapering, is recommended. This simple device also prevents the contamination of labels, for instance by dirty gloves. You can find this solution in any DIY store or request rollers from us. Because sticking to difficult products requires great care.
Application: Optimum adhesion for self-adhesive labels
Benefit: Good adhesion on difficult surfaces!
Sample Requests: info@highheatlabels.com or call 305-393-8669
104-> The Combi Label/Tag - A New Option
The combination of robust plastic films and adhesives with a strong glue offers benefits, e.g. in steel service centers, as it allows to attach the label/tag sticking and hanging. Up to now, the use of thick adhesive layers to achieve adequate adhesion to various steel surfaces had been its limitation, due to the residue these left in the printing systems. The combination of #7177 in 150 µ with PK-80-601 adhesive creates a combination label that achieves top performance in both applications tag or self-adhesive label. At the same time, adhesive breakout inside the printer is reduced to a minimum, due to the adhesive’s compact nature. In the true sense of the word - a neat solution.
Application: Tag or self-adh. label - optimum results for both.
Benefit: Good adhesion on difficult surfaces!
Sample Requests: info@highheatlabels.com or call 305-393-8669
103-> Adhesive Labels for 450° C (850F)
The general shortage of raw materials has led to an increase in exports of semi-finished goods. In the metal industry, the identification of billets is usually carried out by marking the piece number with a stamp or via color coding (tube markers). However, this is not sufficient for the consignees’ identification requirements, as the information is poorly legible due to soiling and the impact of weather. Customers are looking for information that is easy to read for example #7940 labels - suitable for temperatures up to 350° C. The strong aluminium foil can be easily applied with gloves. Special rollers enable the attaching of the label without smearing the surface and/or the barcode. The special adhesive guarantees a secure adhesion to scaly and rough surfaces. A proven solution that works.
Application: Attaching labels to hot billets
Benefit: Low-price and effective fastening
Sample Requests: info@highheatlabels.com or call 305-393-8669
102-> New solution for AIAG ID GRAPHIPLAST® 7527
How goods for inventory will be received in the future can be observed already at some automotive manufacturers in Europe and the US. Unloading containers from pallets by robots followed by checking of shape and identification with data plausibility checks. With this method of receiving inventory, conventional paper labels cause problems. Especially if corners stick out or residue of old labels cannot be removed. Our new development, GRAPHIPLAST® 7527 will solve this problem. The unique adhesive and the special layout of the AIAG form create flexibility for different types of containers. Secure labeling and simple removal without residue guarantee satisfied customers.
Application: An all-round solution for container identification.
Benefit: Satisfied customers with an economical solution
Sample Requests: info@highheatlabels.com or call 305-393-8669

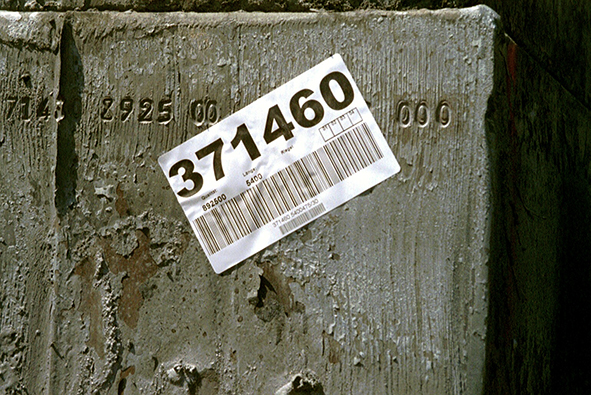

101-> Adhesive solution for rough surfaces
Heat, cold, scale, saw residue and saw emulsion are just some of the challenges requiring thick layers of ultrastrong adhesive. The new PA-80-601 adhesive can be applied as an adhesive field in selected areas of the label/tag, enabling a much higher quantity of adhesive to be applied. No more additional glue has to be applied by hand from a bucket.
Application: Sticking of labels on very difficult surfaces
Benefit: Savings. It can also be used as both a label and a hangtag with attachment hole where needed.
Sample Requests: info@highheatlabels.com or call 305-393-8669
